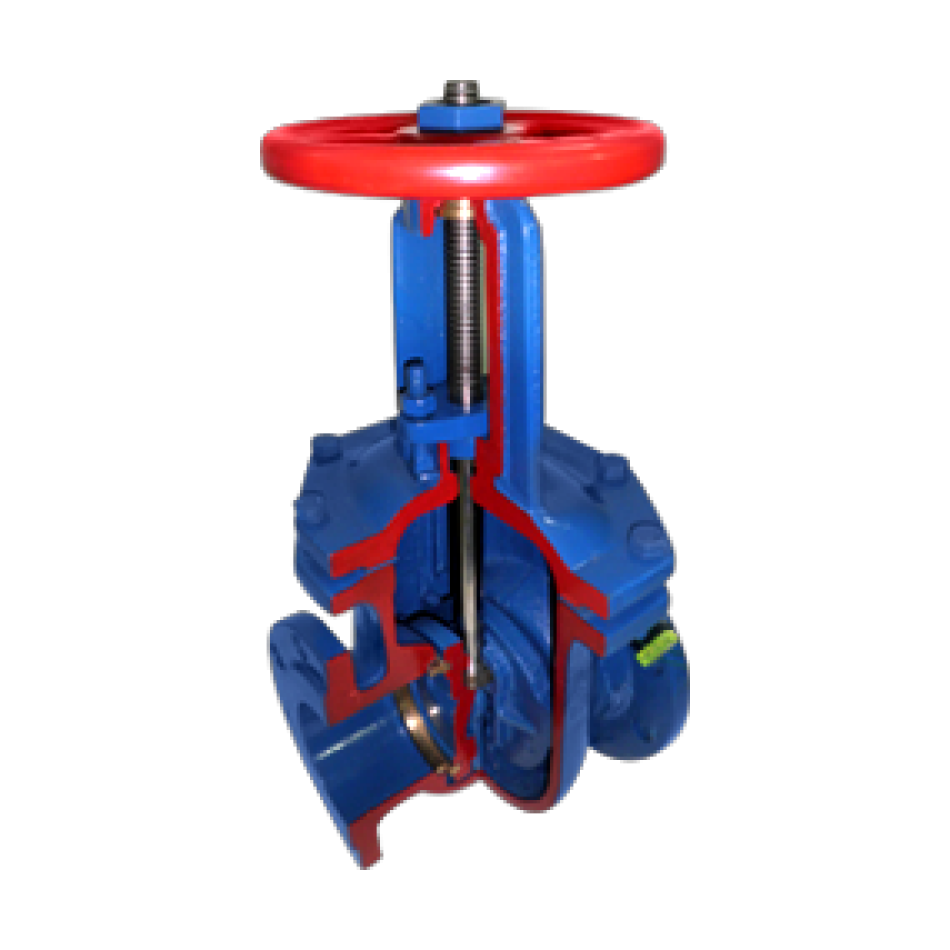

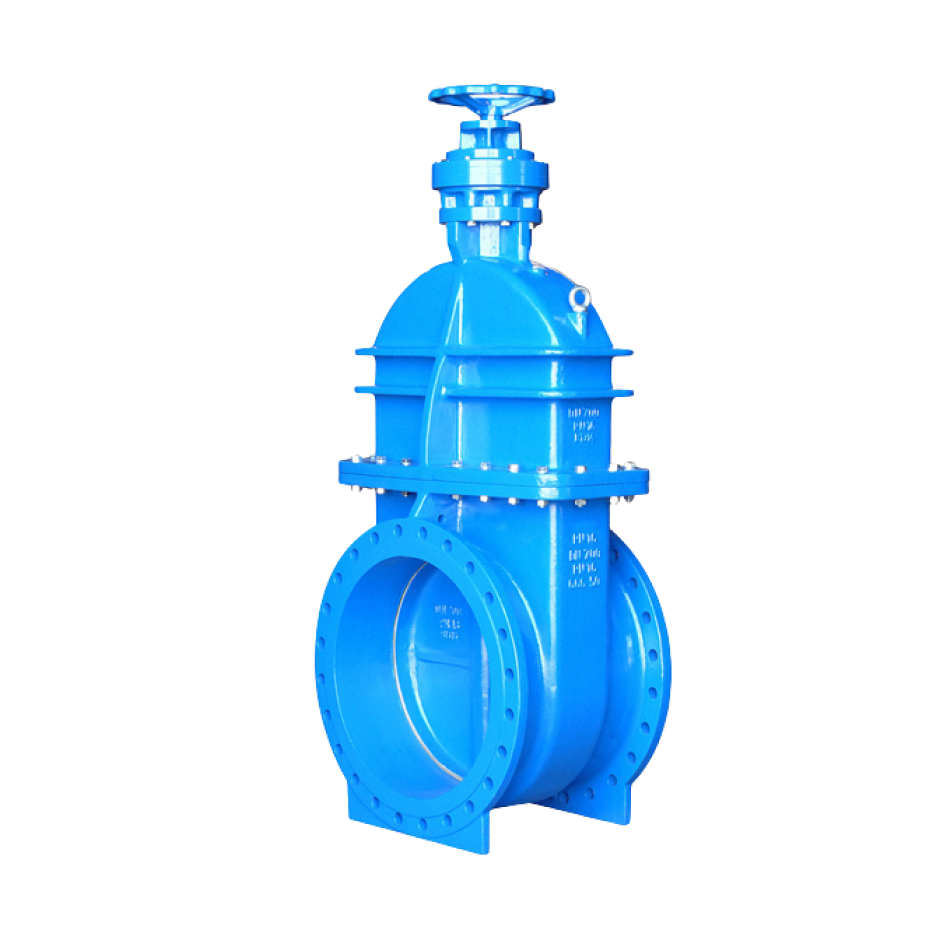

Cast-iron wedge valves parallel two-disc, with a rubberized wedge
They are used as a shut-off device on pipelines transporting water, steam, gas, as well as other liquid and gaseous media neutral to the materials of parts in contact with the working medium.
ANALOGUES
30h6br, 30h906br, 30h537br, 30h937br, 30h7bc, 30h6bc, 30h47bk4, 30h47br, 30h536bc, 30h936bc, 30h37br, 30h937br, 30h915br, 30h715br, 30h915br, 30h39r, 30h539r, 30h939r FAF 6200, 6025 , 6500, VAG KFS, VAG EKO®plus, VAG BETA®200, VAG IKO®plus, VAG KOS
Product Information
DN 50 – DN 1600,
PN 0,6 – PN 25
The material of the main parts
gray cast iron SCH 20, HSHG EN-GJS-400-15 (GGG40), HSHG EN-GJS-500-15 (GT-50)
Control type:

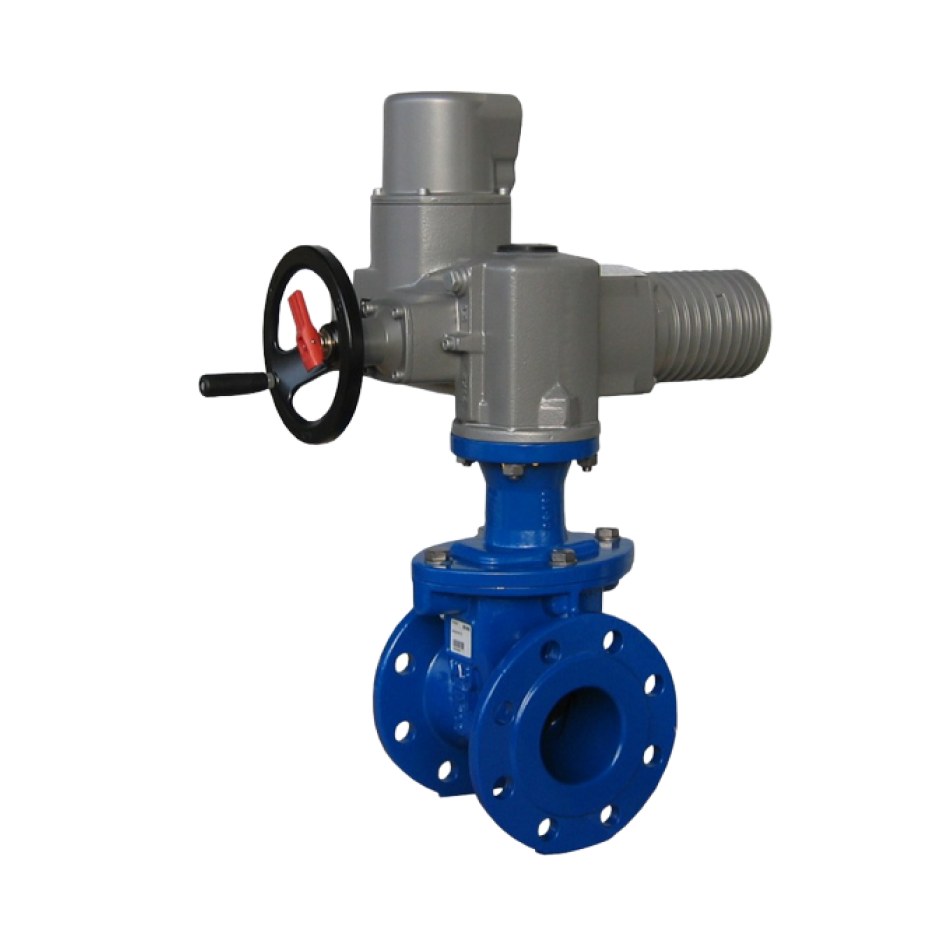

manual – flywheel, gearbox, electric drive, hydraulic drive
Connection to the pipeline
flange – EN, GOST
Manufacturing standards
TS EN 1171, GOST, ST CCBA
TU U 29.1-00218325-012-2001
Suggested manufacturers
Russia
EU countries
China
Ukraine
