Filter MZ 08010 MZ 08010
They are used for cleaning the working environment from mechanical impurities on pipelines and equipment of enterprises of various industries
Analogue
35s1nzh, 35ls1nzh, 35nzh1nzh
Case material
12X18N9TL, 12X18N12MZTL, 12X18N13MZTL, 20L, 10G2SL
Temperature range
-70 °C to 220 °C
Connection to the pipeline
flanged with connection dimensions according to GOST 12815, GOST 33259-2015
The direction of the medium supply
according to the marking on the housing (in the direction of the arrow)
Installation position
any, preferably with the lid down
Working medium
liquid and gaseous, neutral to the materials of parts in contact with the medium
Working environment temperature
from – 70 to + 220oC
Materials of the main parts
Housing – 12X18N9TL, 12X18N12MZTL, 12X18N13MZTL, 20L, 10G2SL
It is possible to manufacture products from other steel grades according to the customers specifications
Filter element – corrosion-resistant steel, polypropylene

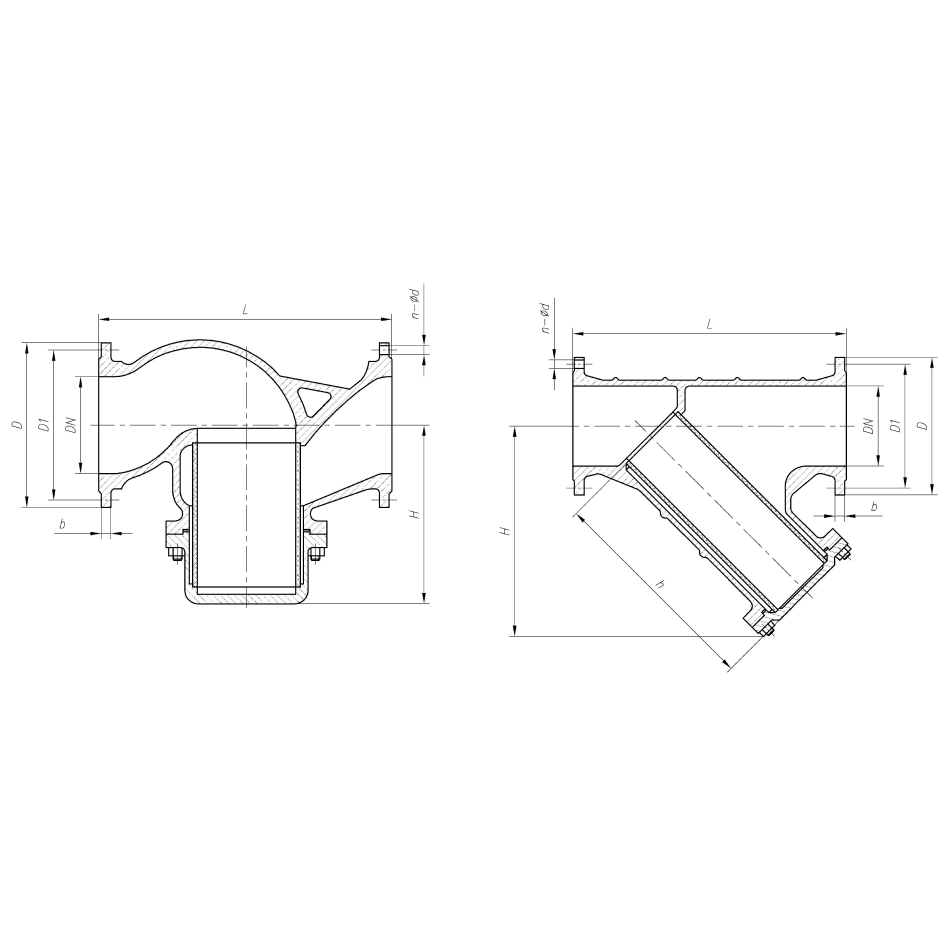

WEIGHT AND SIZE CHARACTERISTICS
| DN | L, mm | D, mm | h, mm | H, mm | m, kg |
| 20 | 150 | 105 | - | * | * |
| 25 | 160 | 115 | - | * | * |
| 32 | 180 | 135 | - | 137 | 8,5 |
| 40 | 200 | 145 | - | 140 | 9,3 |
| 50 | 230 | 160 | - | 147 | 10,5 |
| 65 | 290 | 180 | - | 174 | 18 |
| 80 | 310 | 195 | - | 233 | 24,7 |
| 100 | 350 | 215 | - | 206 | 39 |
| 125 | 400 | 245 | - | 234 | 54,8 |
| 150 | 480 | 280 | - | 277 | 72 |
| 200 | 600 | 335 | - | 368 | 140 |
| 250 | 860 | 405 | 701 | 652 | 250 |
| 300 | 920 | 460 | 1065 | 939 | 402 |
| 350 | 920 | 520 | 1065 | 962 | 503 |
| 400 | 1100 | 580 | 1075 | 962 | 602 |
| 450 | 1100 | 615 | 1045 | 917 | 660 |
| 500 | 1300 | 670 | 1419 | 1021 | 837 |
| 600 | * | 780 | * | * | * |
