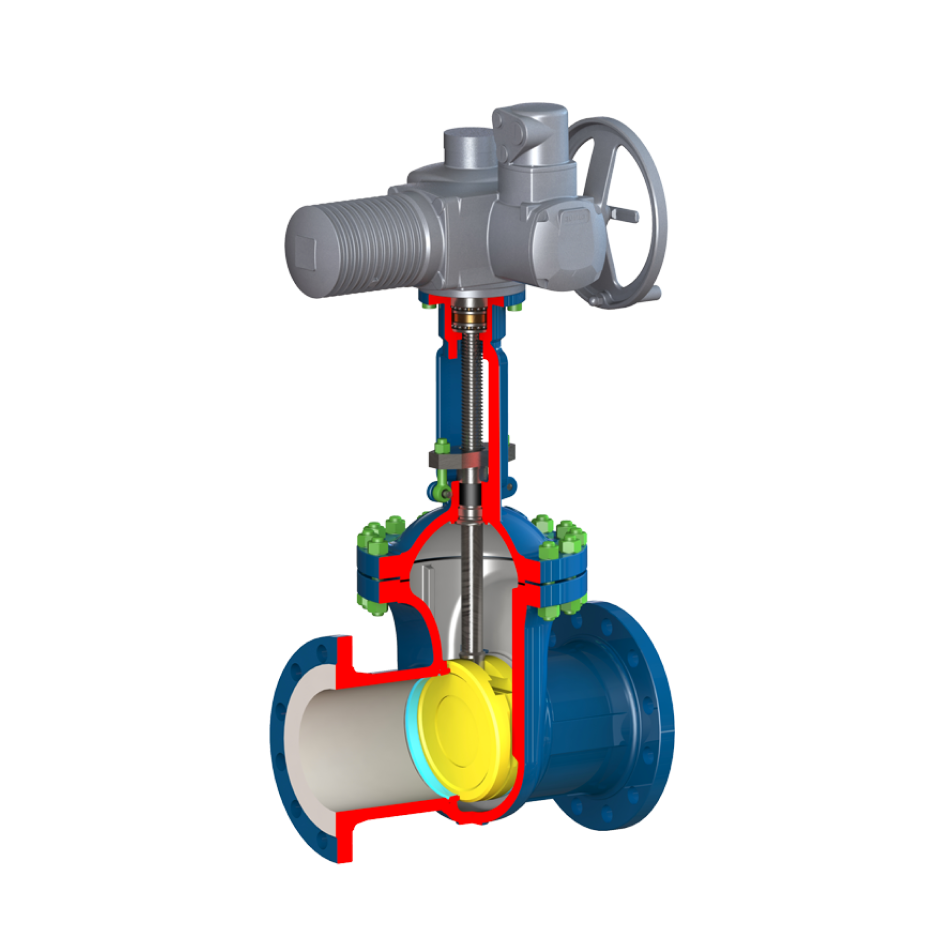

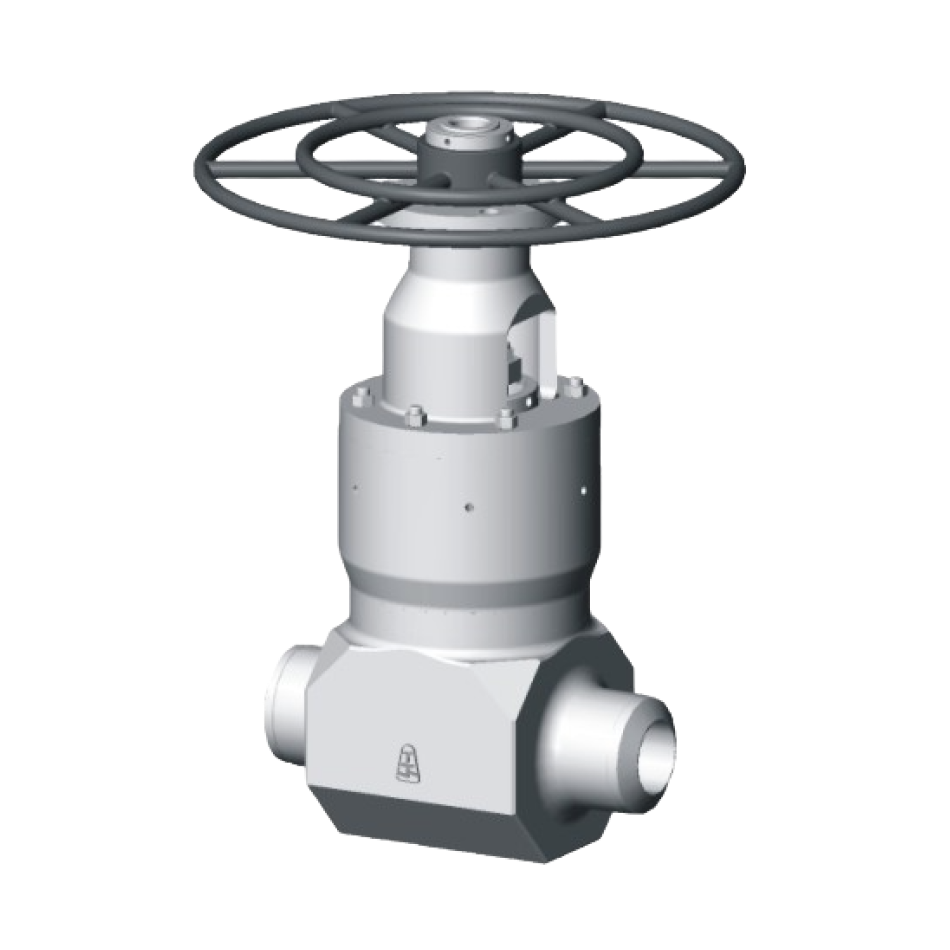

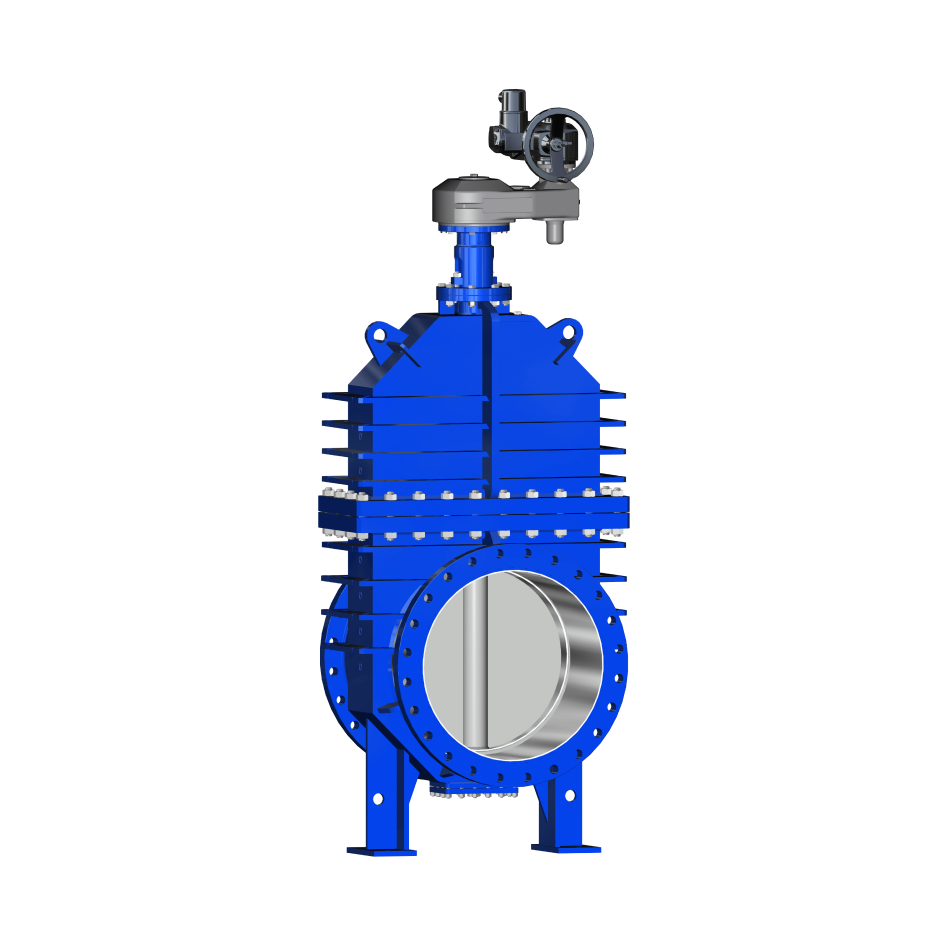

Wedge gate valves, steel, stainless, stamped-welded
It is used as a shut-off device on pipelines transporting water, steam, petroleum products, natural gas; liquid and gaseous aggressive media neutral to the materials of parts in contact with the working medium.
ANALOGUES
30s41nzh, 30s541nzh, 30s941nzh, 30nzh41nzh, 30nzh541nzh, 30nzh941nzh, 30s64nzh, 30s564nzh, 30s964nzh, 30nzh64nzh, 30nzh564nzh, 30nzh964nzh, 30s15nzh, 30s515nzh, 30s915nzh, 30nzh15nzh, 30nzh515nzh, 30nzh915nzh, 30s76nzh, 30s576nzh, 30s976nzh, 30nzh76nzh, 30nzh576nzh, 30nzh976nzh, 31s36nzh, 31s536nzh, 31ls36nzh, 31ls536nzh, 31ls936nzh, 31s936nzh, 31nzh36nzh, 31nzh536nzh, 31nzh936nzh, 31s37nzh, 31ls37nzh, 31s937nzh, 31ls937nzh, 31nzh37nzh, 31nzh937nzh, 31s38nzh, 31s538nzh, 31s938nzh, 31ls38nzh, 31ls938nzh, 31nzh38nzh, 31nzh538nzh, 31nzh938nzh, 31s39nzh, 31s539nzh, 31s939nzh, 31ls39nzh, 31ls539nzh, 31ls939nzh, 31nzh39nzh, 31nzh539nzh, 31nzh939nzh, 31s40nzh, 31s540nzh, 31s940nzh, 31ls40nzh, 31ls540nzh, 31ls940nzh, 31nzh540nzh, 31nzh940nzh, 31s41nzh, 31s541nzh, 31s941nzh, 31ls41nzh, 31ls541nzh, 31ls941nzh, 31nzh41nzh, 31nzh541nzh, 31nzh941nzh, 31s42nzh, 31s542nzh, 31s942nzh, 31ls42nzh, 31ls542nzh, 31ls942nzh, 31nzh42nzh, 31nzh542nzh, 31nzh942nzh, 31s43nzh, 31s543nzh, 31s943nzh, 31ls43nzh, 31ls543nzh, 31ls943nzh, 31nzh43nzh, 31nzh543nzh, 31nzh943nzh, 31s77nzh, 31ls77nzh, 31nzh77nzh, 31s45nzh, 31nzh45nzh, 31s18nzh, 31nzh18nzh
SE.ZKL, ZK, ZKK, ZMS
S33.1, S33.2, S33.4, S33.3, S33.5, S43.1 according to EN, S43.1 according to ASME, S43.5 according to EN, S43.5 according to ASME, S43.3, S33.J, S33.J, S33.C, S43.C, S25, S38
Product Information
DN 25 – DN 2600,
PN 10 – PN 630
Material of the main parts
Steel 20L, 25L, 09G2S, 15HM, 15X5M, 08H18N10, 10H18N9L, 12H18N9TL, 15GSL; 03H17N14M3L, 12H18N10T, 10H17N13M3T
S355J2, A350 LF2, LCB, LCC, 1.4515, 1.4571, ASIS 304, ASIS 316, ASIS 316Ti, ASIS 321, 1.0425, 1.7335, A105, A182 F12, A182 F316, A216 WCB, WCC, A352 LCB, A217 WC6, WC9, C5, C12, A351 CF8, A351 CF8M, 4A,5A,6A, F51,F53, F55,CD3MN, CD2MWCuN, CN7M (Alloy 20), C95800, RG5
1.0425 (P265GH), 1.0566 (P355NL1), 1.0619 (GP240GH), 1.4408 (GX5CrNiMo19-11-2), 1.7357 (G17CrMo5-5), 1.6220 (G20Mn5), P250GH (C22.8), 16Mo3, 13CrMo4-5, 11CrMo9-10
(1.7383), 14MoV6-3, 15NiCuMoNb5-6-4, GP240GH, G20Mo5, G17CrMo5-5
Seal material:
Metal-metal+ surfacing
Type control
manual flywheel, gearbox, electric drive, hydraulic drive
Connection to the pipeline
welded
flange – EN, API, GOST
Manufacturing standard:
DIN EN, API
TU U 29.1-00218325-012-2001 , TU U 28.1-14308859-013-2014 , TU U 28.1-31965106-003 :2020,
TU 3741-001-71430388-2005, GOST 5762-2002,
